Alternator Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

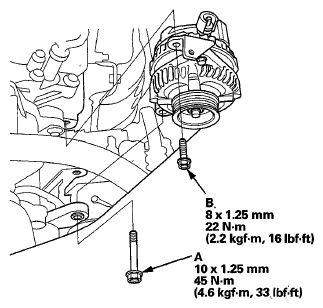

Install the alternator, then tighten the mounting bolt (A) and the alternator bracket mounting bolt (B).

Fig 1: Mounting Bolt And Alternator Bracket Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

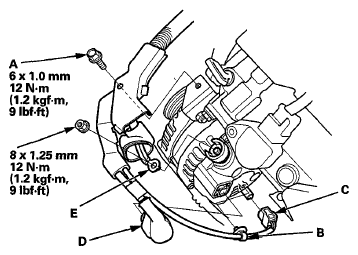

Install the bolt (A) securing the harness holder.

Fig 2: Harness Holder Bolt, Harness Clamp And A/C Compressor Clutch Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness clamp (B) to the alternator and connect the A/C compressor clutch connector (C) to the A/C compressor.
Connect the alternator connecter (D) and the positive alternator cable (E) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.
Install the drive belt (see DRIVE BELT AUTO-TENSIONER INSPECTION ).

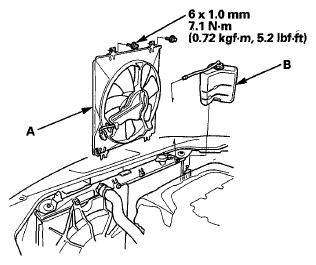

Install the A/C condenser fan shroud assembly (A), then install the coolant reservoir (B).

Fig 3: A/C Condenser Fan Shroud Assembly And Coolant Reservoir With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Raise the vehicle on the lift.

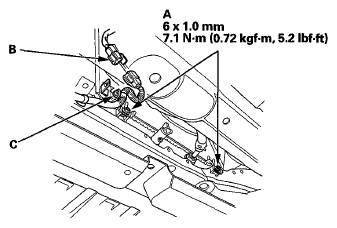

Tighten the A/C condenser fan shroud mounting bolts (A).

Fig 4: A/C Condenser Fan Shroud Mounting Bolts, A/C Condenser Fan Motor Connector And Harness Clamp With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the A/C condenser fan motor connector (B) and install the harness clamp (C).
Install the engine undercover (see step 47 on ENGINE INSTALLATION ).
Lower the vehicle on the lift.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
