Blind Spot Information System (BSI) Control Unit Inputs and Outputs

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

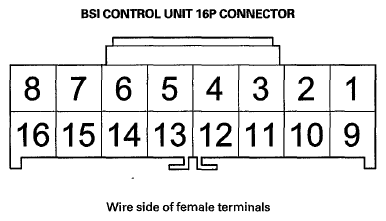

Fig 1: Identifying Blind Spot Information System (BSI) Control Unit Inputs And Outputs Terminals
G06971734Courtesy of AMERICAN HONDA MOTOR CO., INC.
(BSI) CONTROL UNIT CONNECTOR TERMINALS DESCRIPTION

Terminal number Wire color Terminal name Description Signal
1 LT BLU BSI OFF SW Detects the BSI OFF switch --
2 BLK GND Ground circuit for the BSI system Less than 0.2 V at all times
3 PNK B-CAN H B-CAN communication (high) circuit --
4 ORN B-CAN L B-CAN communication (low) circuit --
5 GRY L BSI IND+ Drives the left BSI alert indicator --
6 YEL BSI-CAN H Radar CAN communication (high) circuit --
7 BRN BSI-CAN L Radar CAN communication (low) circuit --
8 Not Used Not Used -- --
9 Not Used Not Used -- --
10 Not Used Not Used -- --
11 BLU R BSI IND+ Drives the right BSI alert indicator --
12 Not Used Not Used -- --
13 Not Used Not Used -- --
14 Not Used Not Used -- --
15 LT GRN IG1 Detects the ignition signal Ignition switch ON (II): battery voltage
Ignition switch LOCK (0): about 0 V
