Under Hood Fuse/Relay Box (Relay Control Module Part)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

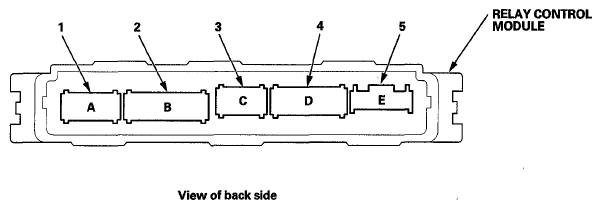

Fig 1: Identifying Relay Control Module Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

UNDER HOOD FUSE/RELAY BOX CONNECTOR TERMINALS CHART

Socket	Ref	Terminals	Connects to
A	1	--	Not used
B	2	16	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
C	3	8	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
D	4	14	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
E	5	4	Right engine compartment wire harness (engine compartment branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) (F) )
