Without Power Tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  2. Disconnect the 4P connector (A) from the tailgate latch assembly (B).

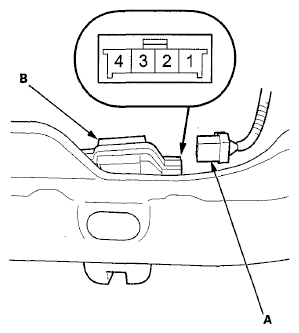

    Fig 1: Identifying Tailgate Latch Assembly Connector Terminals
    G06968879Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.

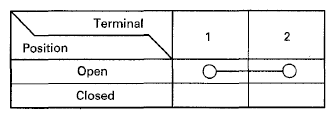

    Fig 2: Identifying Tailgate Latch Assembly Continuity Chart
    G06968880Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, the tailgate latch switch is faulty; replace the tailgate latch (see TAILGATE LATCH REPLACEMENT ).
