Without Power Tailgate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Put on gloves to protect your hands.
  1. If the tailgate latch does not open by using the keyless entry transmitter, remove the maintenance lid (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown in the figure.

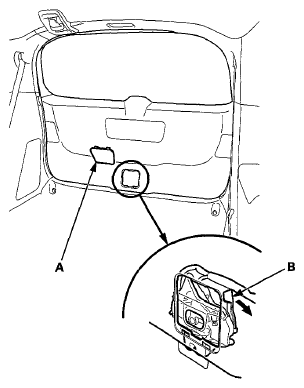

    Fig 1: Turning Emergency Lever
    G06968040Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the tailgate release actuator/latch switch connector (A).

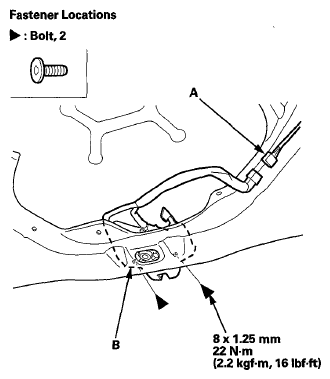

    Fig 2: Actuator/Latch Switch Connector And Tailgate Latch With Torque Specifications
    G06968041Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts, and pull out the tailgate latch (B), then remove it.
  5. Install the latch in the reverse order of removal, and make sure the tailgate opens properly and locks securely.
