Wiper Motor Replacement: Windshield

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Be careful not to scratch or damage the hood and the body.
  1. Remove the windshield wiper arms (see WINDSHIELD ).
  2. Remove the cowl cover (see COWL COVER REPLACEMENT ).
  3. Disconnect the 5P connector (A) from the windshield wiper motor (B).

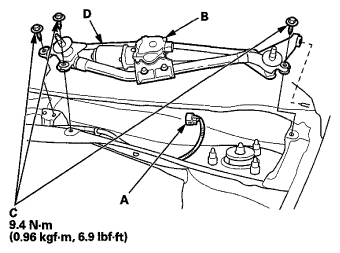

    Fig 1: 5P Connector And Windshield Wiper Motor With Torque Specifications
    G06969926Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three bolts (C) and wiper linkage assembly (D).
  5. Remove the connection rod (A) from the linkage (B).

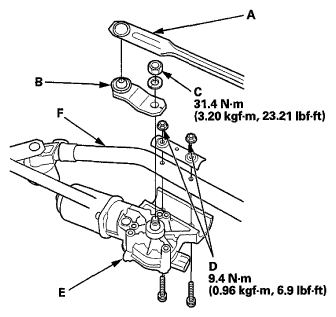

    Fig 2: Connection Rod, Linkage, Bolts And Wiper Linkage Assembly With Torque Specifications
    G06969927Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the nuts (C, D) and separate the linkage from the windshield wiper motor (E).
  7. Remove the two nuts, and separate the windshield wiper motor from the linkage assembly (F) through the hole.
