Rear Window Wiper Motor Replacement: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the position marks when installing the seal (A), then install a washer (B) and the motor (C) and tighten the bolts (D).

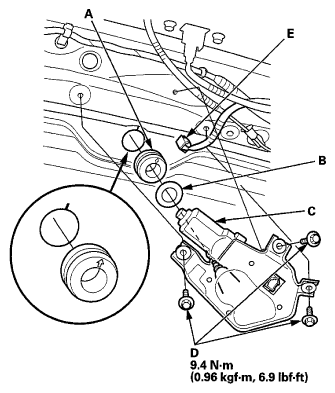

    Fig 1: Rear Window Wiper Motor Bolts With Torque Specifications
    G06969931Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the 4P connector (E) to the rear window wiper motor.
  3. Install in the reverse order of removal, and note these items:
    • Grease the moving parts.
    • Before reinstalling the wiper arm, connect the 4P connector to the wiper motor and turn the rear window wiper switch ON then OFF to return the wiper shaft to the park position.
    • Check the wiper motor operation.
  4. After installation, adjust the wiper arm (see REAR WINDOW  ).
