Front Latch Cable

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This cable is routed between the latch remote control assembly and the front latch assembly. It is pulled by the latch remote control assembly and releases the front latch to open the door.
  • The latch remote control assembly needs to be off the door to reach the front latch assembly.
  • The cable bracket on the front latch assembly needs to be adjusted before the front latch assembly is mounted on the door.
  1. Connect the front latch cable to the front latch assembly lever and bracket.
  2. Adjust the cable bracket (A) so that the measurement (B) is 71.9 mm (2.831 in) at the other end of the cable including the latch free play, then tighten the bolt (C).
    Fig 1: Identifying Cable Bracket Adjusting Dimension
    G06967525Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. After the front latch assembly is installed on the door and the front latch cable is connected to the remote control assembly, confirm that the measurement is still 34.8 mm (1.370 in).

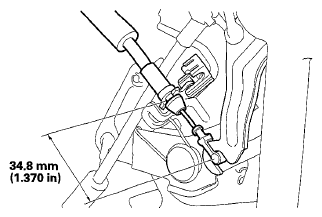

    Fig 2: Identifying Connection Of Front Latch Cable To Remote Control Assembly
    G06967526Courtesy of AMERICAN HONDA MOTOR CO., INC.
