Front Door Outer Molding Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

If you remove the door outer molding, replace it with a new one because it will bend during removal.
Put on gloves to protect your hands.
Take care not to scratch the door.
Take care not to damage the rear upper corner clip (black) because they are not available seperately.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the power mirror (see POWER MIRROR REPLACEMENT ).

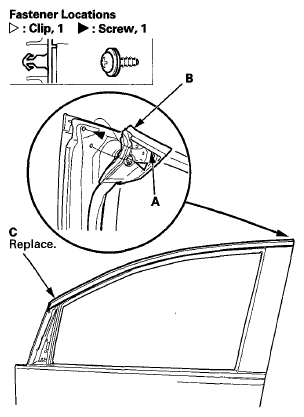

Detach the clip with a clip remover, and release the rib (A), then pull back the door weatherstrip (B). Remove the screw securing the door outer molding (C).

Fig 1: Identifying Rib, Door Weatherstrip And Door Outer Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.

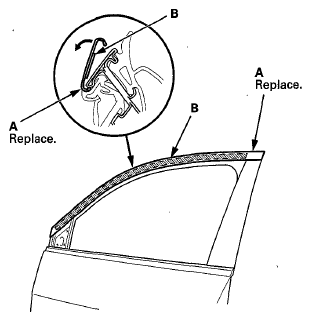

Pull out the upper edge of the door outer molding (A) from the edge of the sash, and cut the double-sided adhesive tape (B) with a utility knife, then remove the molding from the sash.

Fig 2: Identifying Double-Sided Adhesive Tape On Door Outer Molding
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully remove the remaining double-sided adhesive tape from the sash, then clean the sash surface with a shop towel dampened with isopropyl alcohol.
Install the molding in the reverse order of removal, and note these items:
- Push the adhesive areas into place securely.
- Make sure the upper and lower sides of the molding are catching the edges of the sash properly.
- Push the clip and the rib into place securely.
