Special Tools Required

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

KTC Trim Tool Set SOJATP2014*

* Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

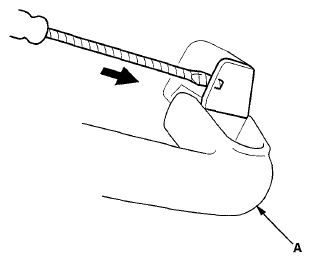

Lower the grab handle (A), then insert a small flat-tip screwdriver into the notch.

Fig 1: Inserting Flat-Tip Screwdriver Into Notch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

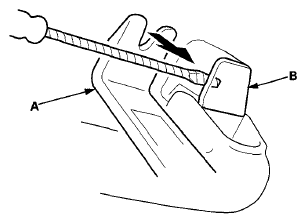

Pull on the small flat-tip screwdriver with the appropriate trim tool (A), and remove the cap (B).

Fig 2: Removing Cap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

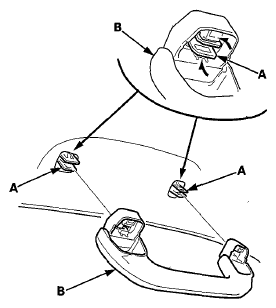

Pinch the clips (A) to release its hooks, then remove the grab handle (B).

Fig 3: Identifying Clips And Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pinch the hooks on the clips (A) with a pair of pliers, and pull out the clips.

Fig 4: Pulling Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the side curtain airbag has deployed, replace the grab handle, along with the other parts listed for side curtain airbag deployment (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
If the side curtain airbag has not deployed, inspect the grab handle for damage. A damaged grab handle may cause the side curtain airbags to deploy improperly, possibly causing injury. Replace the grab handle if it has any of the following damage:
- Any cracks or damage in the grab handle (A)
- Any cracks or stress-whitening in the caps (B)

  Fig 5: Identifying Cracks And Damage On Grab Handle And Caps
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

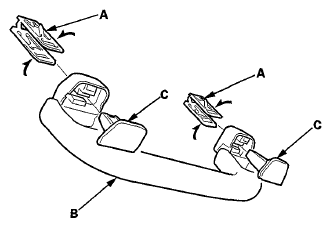

Install the clips (A) on the grab handle (B), then insert the caps (C) fully into the clips.

Fig 6: Identifying Clips On Grab Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.

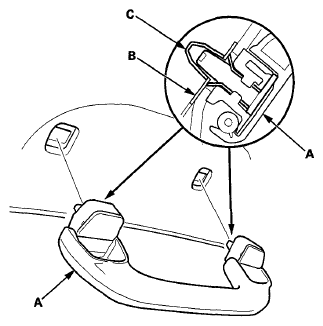

Position the grab handle (A) on the mounting bracket (B), and push on the grab handle until the clips (C) snap into place securely.

Fig 7: Identifying Grab Handle On Mounting Bracket And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
