Backlash Inspection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To prevent damage to the inboard joint, always use soft jaws or equivalent materials between the inboard joint and the vise.

Install the driveshaft and the intermediate shaft into the differential assembly.
Secure the driveshaft inboard joint (A) in a bench vise (B) with soft jaws (C).

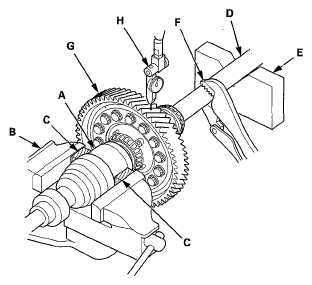

Fig 1: Measuring Backlash Of Final Driven Gear
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the intermediate shaft (D) on a V-block (E), then hold the intermediate shaft using locking pliers (F).
Measure the backlash of the final driven gear (G) using a dial indicator (H).
Standard: 1.4-2.0 mm (0.055-0.079 in)
- If the backlash is within the standard, go to next step.
- If the backlash is out of the standard, replace the differential assembly.
Remove the driveshaft inboard joint from the bench vise.
Remove the driveshaft and the intermediate shaft from the differential assembly.
NOTE: Make sure the driveshaft inboard joint and the inboard boot are not damaged. If any damage is found, replace the driveshaft inboard joint or the inboard boot as an assembly.
