Side Impact Sensor (First) Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Remove the B-pillar lower trim (see B-PILLAR UPPER/LOWER TRIM ).
  3. Disconnect the side impact sensor (first) 4P connector (A) on the left or right side wire harness.

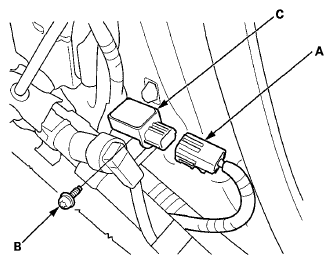

    Fig 1: Identifying Side Impact Sensor (First) 4P Connector And Torx Bolt
    G06971694Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the TORX bolt (B) using a TORX T30 bit, then remove the side impact sensor (first) (C).
