Rear Safing Sensor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before starting work.
  2. Raise both third row seats up, and secure them.
  3. Remove the left and right lower pivot cover (see step 2 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  4. Remove the center lower pivot cover (see step 3 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  5. Remove the left and right upper pivot cover (see step 5 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  6. Remove the center upper pivot cover (see step 6 on THIRD ROW SEAT REMOVAL/INSTALLATION ).
  7. Detach the clips (A), then turn over the carpet (B).

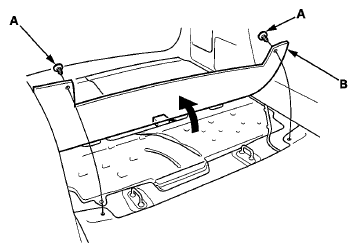

    Fig 1: Turning Carpet
    G06971702Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the cover (A), then disconnect the rear safing sensor 2P connector (B) on the left side wire harness.

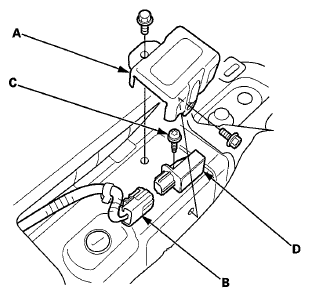

    Fig 2: Identifying Cover, Torx Bolt, Rear Safing Sensor And 2P Connector
    G06971703Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the TORX bolt (C) using a TORX T30 bit, then remove the rear safing sensor (D).
