Driver's Seat Position Sensor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not turn the ignition switch to ON (II) while removing the driver's seat position sensor.
  1. Raise the driver's seat all the way up, and position all the way rearward.
  2. remove the outer cover (see step 3 on FRONT SEAT FRAME REPLACEMENT ).
  3. Disconnect the driver's seat position sensor 2P connector (A) on the driver's seat wire harness.

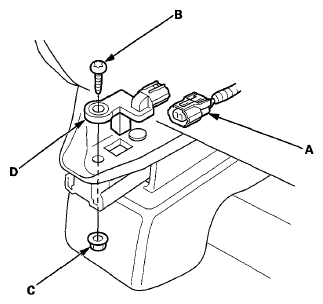

    Fig 1: Identifying Driver's Seat Position Sensor With 2P Connector And Torx Bolt
    G06971710Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the TORX bolt (B) while holding the nut (C) using a TORX T30 bit, then remove the driver's seat position sensor (D).
