Fan Motor Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

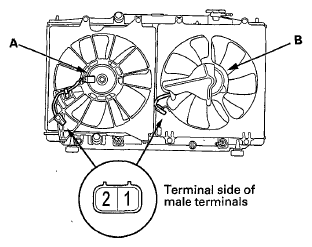

    Fig 1: Identifying Radiator Fan Motor And A/C Condenser Fan Motor
    G06422391Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test each motor by connecting battery power to terminal No. 1 and ground to terminal No. 2.
  3. If either motor fails to run or does not run smoothly, replace it (see REMOVAL  ).
