Taillight Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the two bolts (A) from the taillight.

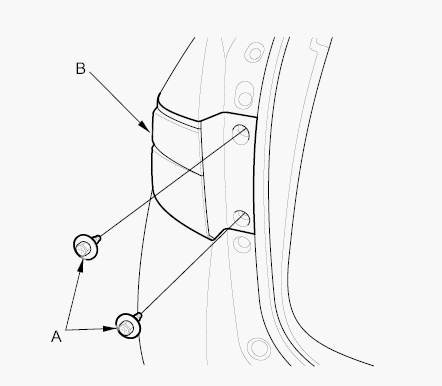

    Fig 1: Identifying Taillight Bolts
    G00523694Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. To remove the taillight assembly (A), carefully pull straight back on the front upper edge of the taillight assembly with your fingers, while supporting the lower edge with your other hand.
    NOTE: When removing, be carefull not to damage the edges of the center rail cover (B) and the bumper (C).

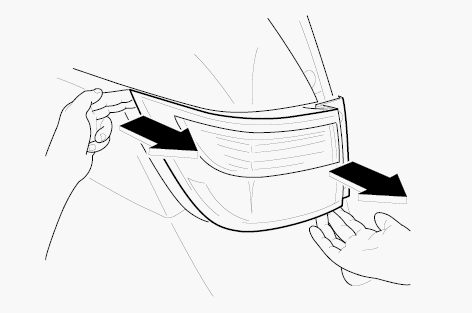

    Fig 2: Removing Taillight
    G00523695Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (A) from the bulb sockets.

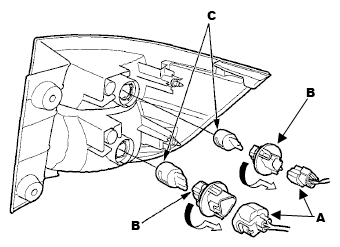

    Fig 3: Identifying Bulb Sockets And Bulbs
    G06968798Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Turn the bulb sockets (B) 45 ° counterclockwise to remove the bulbs (C).
  6. Install the light in the reverse order of removal.
