MICU Input Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Before testing, make sure the No. B6 (7.5 A), No. B16 (10 A), No. B18 (20 A), No. B20 (10 A), and No. B24 (10 A) fuses in the under-hood fuse/relay box, and the No. C11 (7.5 A), No. C27 (7.5 A) fuses in the driver's under-dash fuse/relay box are OK.
  • Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Turn the ignition switch to LOCK (0).
  2. Remove the driver's kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  3. Disconnect driver's under-dash fuse/relay box connectors E, F, G, H, P, and Q.
    NOTE: All connector views are wire side of female terminals.

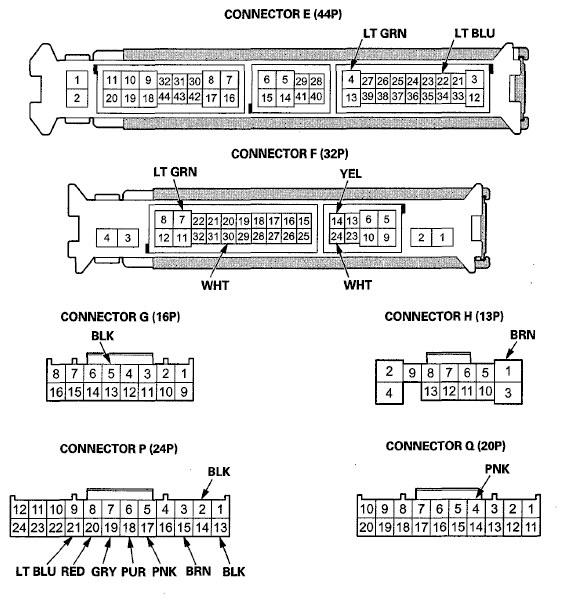

    Fig 1: Identifying Multiplex Integrated Control Unit Connector Terminals
    G06968774Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. With the connectors still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6.
      MICU TEST CONDITION CHART

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      E4
      .
      F7      		 LT GRN
      .
      LT GRN      		 Brake pedal pressed Connect terminals F7 and E4 with a jumper wire:
      The brake lights and high mount brake light should come on.
      • Blown bulb
      • Faulty brake pedal position switch
      • Poor ground(G801, G802) or an open in the ground wire
      • An open or high resistance in the wire
  6. With the connectors still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 7.
      MICU TEST CONDITION CHART

      Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
      F24 WHT Under all conditions Measure the voltage to ground: There should be battery voltage.
      • Blown No. B16 (10 A) fuse in the under-hood fuse/relay box
      • An open or high resistance in the wire
      H1 BRN Under all conditions Check for continuity to ground: There should be continuity.
      • Poor ground (G402)
      • An open or high resistance in the ground wire
      G5 BLK In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V.
      • Poor ground(G401)
      • An open or high resistance in the ground wire
      P2 BLK In all ignition switch positions Measure the voltage to ground: There should be battery voltage.
      • Poor ground (G401)
      • An open or high resistance in the ground wire
      E22 LT BLU Driver's door open Measure the voltage to ground: There should be less than 0.2 V.
      • Faulty driver's door switch
      • Faulty driver's door switch ground
      • An open or high resistance in the wire
      Driver's door closed Measure the voltage to ground: There should be about 5 V.
      • Faulty driver's door switch
      • A short to ground in the wire
      Q4 PNK Ignition key inserted into the ignition switch Measure the voltage to ground: There should be less than 0.2 V.
      • Faulty ignition key switch
      • Poor ground (G402) or an open in the ground wire
      • An open or high resistance in the wire
      Ignition switch LOCK (0), and the ignition key removed from the ignition switch Measure the voltage to ground: There should be about 5 V.
      • Faulty ignition key switch
      • A short to ground in the wire
      F30 WHT Ignition switch ON (II). Transmission range switch in any other position then R. Measure the voltage to ground: There should be battery voltage.
      • Blown No. C11 (7.5 A) fuse in the driver's under-dash fuse/relay box
      • Faulty reverse relay
      • Faulty driver's under-dash fuse/relay box
      Ignition switch ON (II). Transmission range switch in R position. Measure the voltage to ground: There should be about 5 V.
      • Faulty transmission range switch
      • Poor ground (G101) or an open in the ground wire
      • An open or high resistance in the wire
      P17
      .
      P13      		 PNK
      .
      BLK      		 Combination light switch OFF Measure the voltage between terminals P13 and P17: There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Combination light switch in any other position than OFF Measure the voltage between terminals P13 and P17: There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      P19
      .
      P13      		 GRY
      .
      BLK      		 Combination light switch (parking light) ON Measure the voltage between terminals P13 and P17:
      There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Combination light switch OFF Measure the voltage between terminals P13 and P17:
      There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      P15
      .
      P13      		 BRN
      .
      BLK      		 Combination light switch (headlight) ON Measure the voltage between terminals P13 and P15: There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Combination light switch OFF Measure the voltage between terminals P13 and P15: There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      P20
      .
      P13      		 RED
      .
      BLK      		 Combination light switch lever pulled (Passing) Measure the voltage between terminals P13 and P20: There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Combination light switch lever released (OFF) Measure the voltage between terminals P13 and P20: There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      P21
      .
      P13      		 LT BLU
      .
      BLK      		 Combination light switch (Dimmer) in high beam position Measure the voltage between terminals P13 and P21: There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Combination light switch (Dimmer) in low beam position Measure the voltage between terminals P13 and P21: There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      P18
      .
      P13      		 PUR
      .
      BLK      		 Fog light switch ON Measure the voltage between terminals P13 and P18: There should be less than 0.2 V.
      • Faulty combination light switch
      • An open or high resistance in the wire
      Fog light switch OFF Measure the voltage between terminals P13 and P18: There should be about 5 V.
      • Faulty combination light switch
      • A short to ground in the wire
      F14 YEL Driver's under-dash fuse/relay box connector F (32P) disconnected Check for continuity between terminal F14 and the relay control module connector B (16P) terminal No. 14: There should be continuity. An open or high resistance in the wire
      Measure the voltage to ground: There should be about 5 V. A short to ground in the wire
  7. If multiple failures are found on more than one control unit, replace the driver's under-dash fuse/relay box (includes the MICU).
