Inner Taillight Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the tailgate.
  2. Remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the connectors (A) from the inner taillight (B).

    Taillight: 3 CP

    Back-Up Light: 21 W

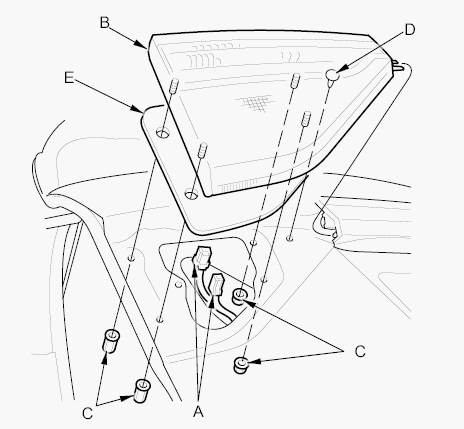

    Fig 1: Identifying Connectors, Nuts And Clip
    G00523696Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the four nuts (C).
  5. Use a small pry bar to release the clip (D) from inside the tailgate.
  6. Inspect the gasket (E); replace it if it is distorted or stays compressed.
  7. Install the inner taillight in the reverse order of removal.
