Fog Light Bulb Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front inner fender as needed (see FRONT INNER FENDER REPLACEMENT ).
  2. Pull back the front inner fender (A) as needed to access the fog light.

    Fog Light: 55 W

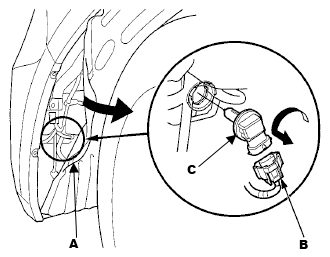

    Fig 1: Identifying Fog Light 2P Connector
    G06968796Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 2P connector (B) from the fog light.
  4. Turn the bulb socket (C) 45 ° counterclockwise to remove the bulb.
  5. Install a new bulb in the reverse order of removal.
