Combination Light Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  2. Disconnect the 12P connector (A) from the combination light switch (B).

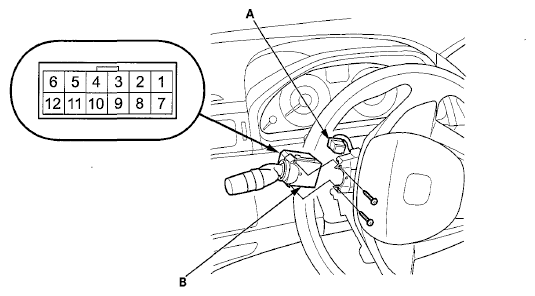

    Fig 1: Identifying 12P Connector And Combination Light Switch
    G06968775Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the two screws, then slide out the combination light switch.
  4. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. Check for continuity between the terminals in each switch position according to the figures below.

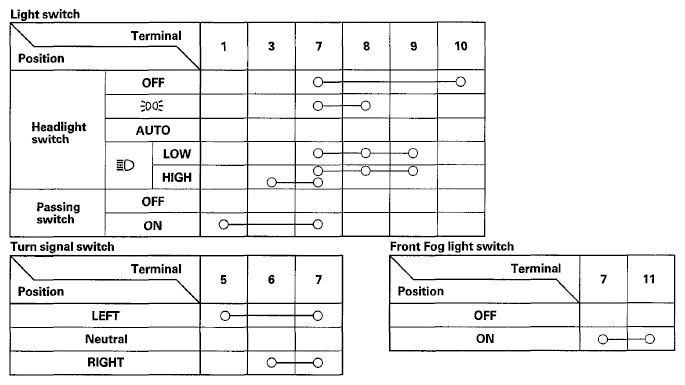

    Fig 2: Combination Light Switch Continuity Chart
    G06968776Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity is not as specified, replace the switch.
  7. Install the switch in the reverse order of removal.
