Front Turn Signal/Parking/Side Marker Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 3P connector (A) from the front turn signal/parking/side marker light.

    Front Turn Signal/Position Light: 28/8 W

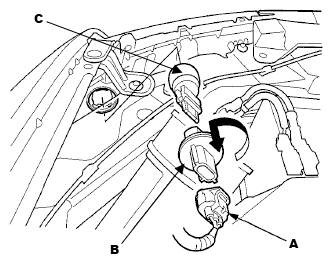

    Fig 1: Identifying Signal/Parking/Side Marker Light 3P Connector
    G06968790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the bulb socket (B) 45 ° counterclockwise to remove the bulb (C).
  3. Install a new bulb in the reverse order of removal.
