Brake Pedal Position Switch Test/Replacement: Test

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the 4P connector (A) from the brake pedal position switch (B).

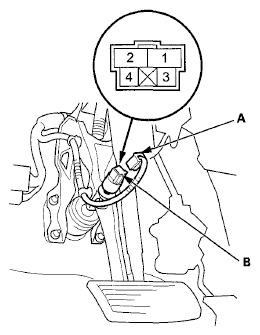

Fig 1: Identifying 4P Connector And Brake Pedal Position Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

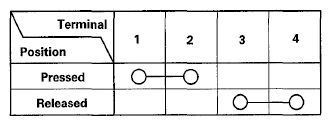

Fig 2: Brake Pedal Position Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the test results are not as specified, do the Brake Pedal and Brake Pedal Position Switch Adjustment (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT ), then recheck. If the results are still not as specified, replace the switch.
