Gauge Control Module Input Test
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before testing, do the gauge control module self-diagnosis function (see SELF-DIAGNOSTIC FUNCTION ), and make sure the B-CAN communication lines are OK.
- Before testing, troubleshoot the multiplex integrated control system first, using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
- Turn the ignition switch to LOCK (0).

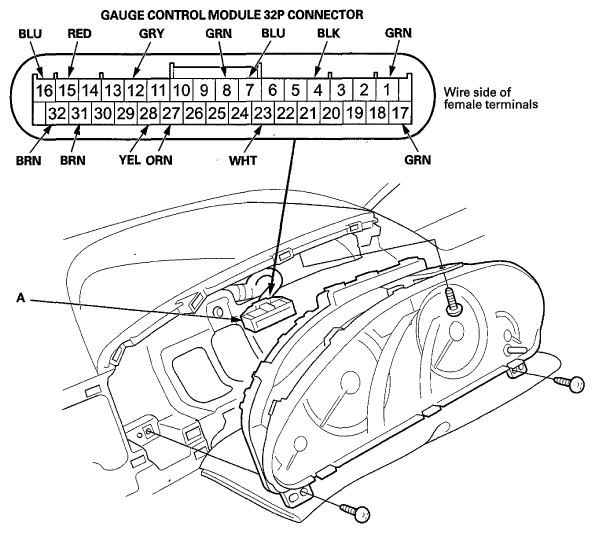

- Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ), and disconnect the gauge control module 32P connector (A) from it.
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
- With the connector still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, go to step 5.GAUGE CONTROL MODULE INPUT TEST RESULT
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 16 BLU Combination light switch ON Connect to ground with a jumper wire: The dashlights should come on full bright. - Faulty bulbs
- An open or high resistance in the wire
15 RED Combination light switch ON Connect to ground with a jumper wire: The dashlights should come on full bright. - Faulty LEDs
- An open or high resistance in the wire
8 GRN Ignition switch ON (II), turn signal switch in RIGHT Measure the voltage to ground: There should be battery voltage when the lights are flashing. - Faulty MICU
- Faulty combination light switch
- An open or high resistance in the wire
7 BLU Ignition switch ON (II), turn signal switch in LEFT Measure the voltage to ground: There should be battery voltage when the lights are flashing. - Faulty MICU
- Faulty combination light switch
- An open or high resistance in the wire
23 WHT Battery sensor 2P connector disconnected Check for continuity between terminal No. 23 and battery sensor 2P connector terminal No. 1: There should be continuity. An open in the UART wire Check for continuity to ground:
There should be no continuity.A short to ground in the UART wire
- Reconnect the 32P connector to the gauge control module, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If the input test proves OK, the gauge control module must be faulty; replace it (see GAUGE CONTROL MODULE REPLACEMENT
).GAUGE CONTROL MODULE INPUT TEST RESULT
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 1 GRN Under all conditions Measure the voltage to ground: There should be battery voltage. - Blown No. B16 (10 A) fuse in the under-hood fuse/relay box
- An open or high resistance in the wire
17 GRN Ignition switch ON (II) Measure the voltage to ground: There should be battery voltage. - Blown No. C11 (7.5 A) fuse in the driver's under-dash fuse/relay box
- An open or high resistance in the wire
4 BLK In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V. - Poor ground (G401)
- An open or high resistance in the ground wire
31 BRN In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V. - Poor ground (G402)
- An open or high resistance in the ground wire
32 BRN In all ignition switch positions Measure the voltage to ground: There should be less than 0.2 V. - Poor ground (G402)
- An open or high resistance in the ground wire
12 GRY Ignition switch ON (II), washer fluid is full level in the reservoir Measure the voltage to ground: There should be about 5 V. - Faulty brake fluid level switch
- A short to ground in the wire
Ignition switch ON (II), washer fluid is at a lower level in the reservoir Measure the voltage to ground: There should be less than 0.2 V. - Faulty washer fluid level switch
- Poor ground (G204) or an open in the ground wire
- An open or high resistance in the wire
27 ORN Ignition switch ON (II), brake fluid level is full in the reservoir Measure the voltage to ground: There should be battery voltage. - Faulty brake fluid level switch
- A short to ground in the wire
Ignition switch ON (II), brake fluid level is lower in the reservoir Measure the voltage to ground: There should be less than 0.2 V. - Faulty brake fluid level switch
- Poor ground (G302) or an open in the ground wire
- An open or high resistance in the wire
28 YEL Ignition switch ON (II), parking pedal released Measure the voltage to ground: There should be battery voltage. - Faulty brake fluid level switch
- A short to ground in the wire
Ignition switch ON (II), parking pedal pressed Measure the voltage to ground: There should be less than 0.2 V. - Faulty parking brake switch
- Faulty parking brake switch ground
- An open or high resistance in the wire
