Front Engine Mount Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake scoop (see step 1 on INTAKE AIR RESONATOR REMOVAL/INSTALLATION ).
  2. Remove the A/C condenser fan shroud assembly, then remove the radiator fan shroud assembly (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ).
  3. Do the battery removal procedure (see BATTERY REMOVAL AND INSTALLATION ).

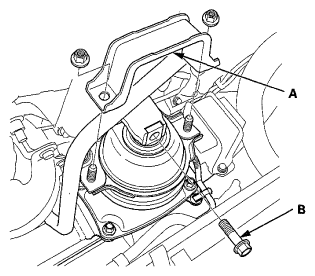

  4. Remove the front engine mount stop (A), then remove the front engine mount mounting bolt (B).
    Fig 1: Identifying Front Engine Mount Stop And Front Engine Mount With Mounting Bolt
    G06966410Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Lift and support the engine with a jack and a wood block under the engine/transmission.

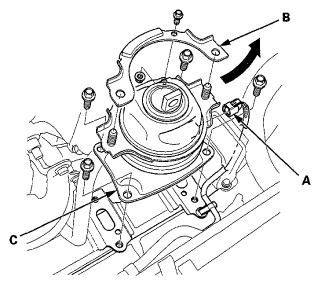

  6. Disconnect the front engine mount actuator connector (A), then remove the front engine mount bracket (B) and the front engine mount (C) as shown.
    Fig 2: Removing Front Engine Mount Actuator Connector
    G06966411Courtesy of AMERICAN HONDA MOTOR CO., INC.
