Propeller Shaft Installation

Install the No. 2 propeller shaft (A) onto the rear differential (B) by aligning the reference mark (C) you made, then install new propeller shaft mounting bolts.

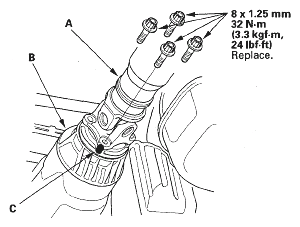

Fig 1: Mark On No. 2 Propeller Shaft & Rear Differential With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new center support bearing mounting bolts.

Fig 2: Center Support Bearing Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the No. 1 propeller shaft (A) onto the transfer assembly (B) by aligning the reference mark (C) you made, then install new propeller shaft mounting bolts.

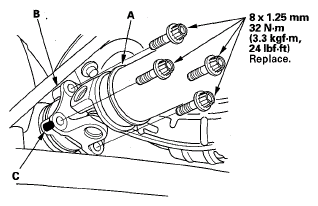

Fig 3: Reference Mark On No. 1 Propeller Shaft & Transfer Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the No. 2 propeller shaft protector (A).

Fig 4: No. 2 Propeller Shaft Protector With Torque Specifications
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Install the No. 1 propeller shaft protector (A).

Fig 5: No. 1 Propeller Shaft Protector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test-drive the vehicle.
If you installed a new propeller shaft, test-drive the vehicle at 55 mph (88 km/h), and check for noise or vibration. If there is a noise or vibration, rotate the propeller shaft 180 degrees from its current alignment with the rear differential companion flange, then recheck.
