Trailer Lighting Control Unit (Honda Accessory) (View 201)
Trailer Lighting Control Unit (Honda Accessory) (View 201)
N/A
Under left side of dash
On trailer unit harness (Honda Accesory)

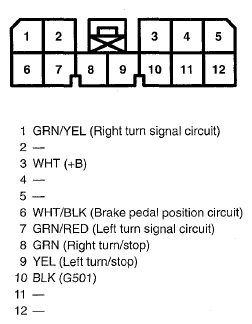

Fig 1: Trailer Lighting Control Unit (Honda Accessory) Connector Terminal (View 201)
