PGM-FI Main Relay 1 and PGM-FI Main Relay 2 (View 249)
PGM-FI Main Relay 1 and PGM-FI Main Relay 2 (View 249)
BLU
Behind glove box
On ECM/PCM wire harness

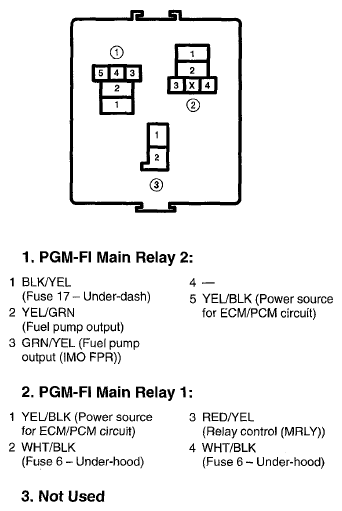

Fig 1: PGM-FI Main Relay 1 And PGM-FI Main Relay 2 Connector Terminal (View 249)
