Immobilizer Control Unit-Receiver (View 187)
Immobilizer Control Unit-Receiver (View 187)
GRN
In steering column cover
On dashboard wire harness B

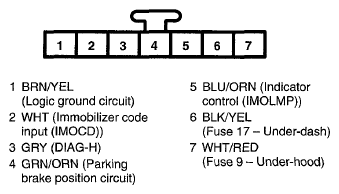

Fig 1: Immobilizer Control Unit-Receiver Connector Terminal (View 187)
