APP Sensor (View 173)
APP Sensor (View 173)
BLK
Right rear of engine compartment
On engine wire harness

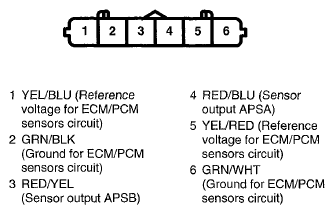

Fig 1: APP Sensor Connector Terminal (View 173)
