GA-NET Bus (EX, SC: except Navigation)

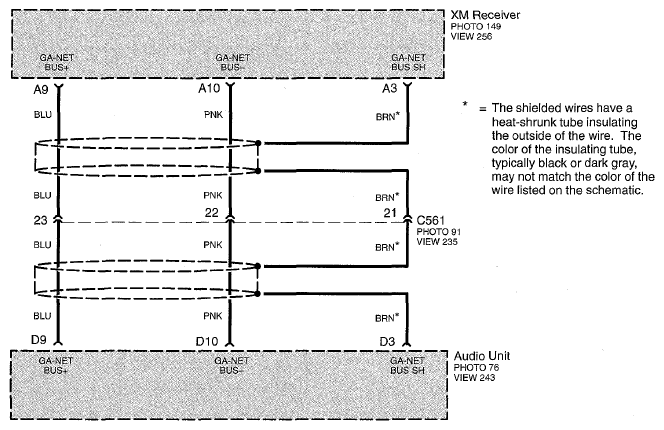

Fig 1: GA-NET Bus (Except Navigation) Circuit Diagram (Page 50-4)
