Navigation System: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

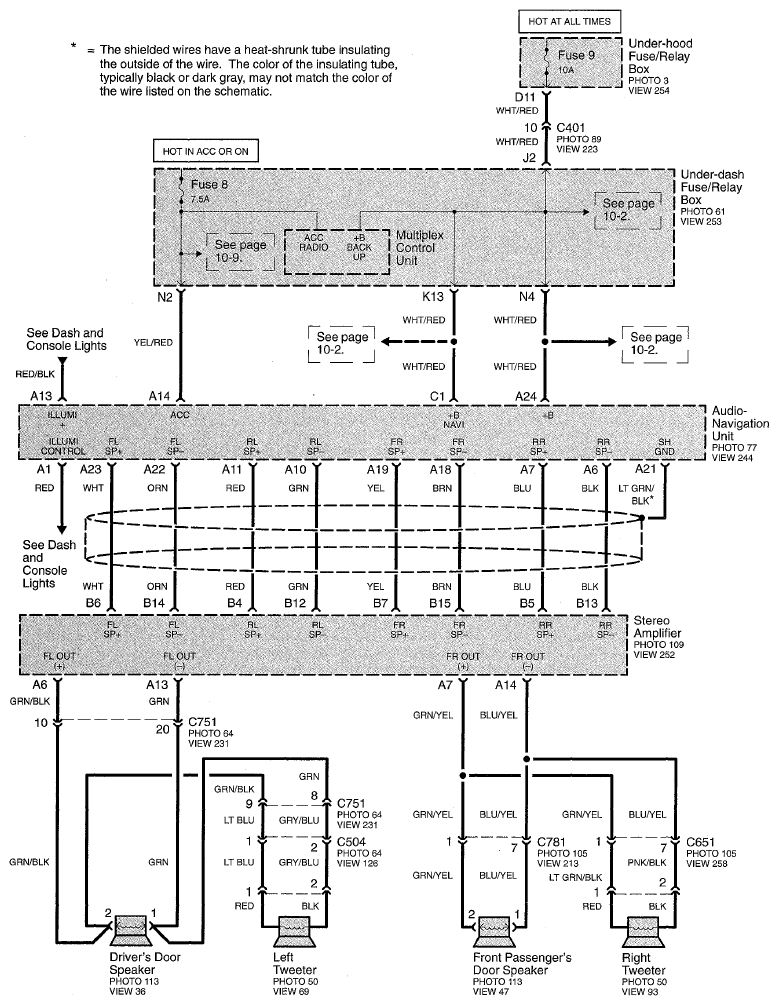

Fig 1: Navigation System Circuit Diagram (Page 156)
G07758425

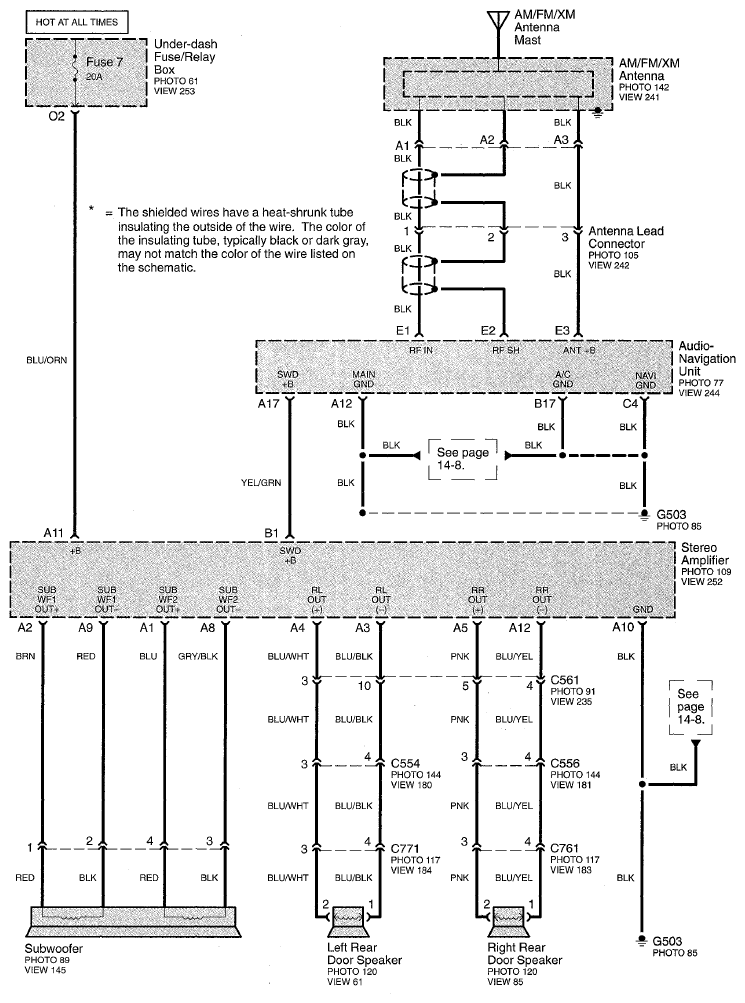

Fig 2: Navigation System Circuit Diagram (Page 156-1)
G07758426

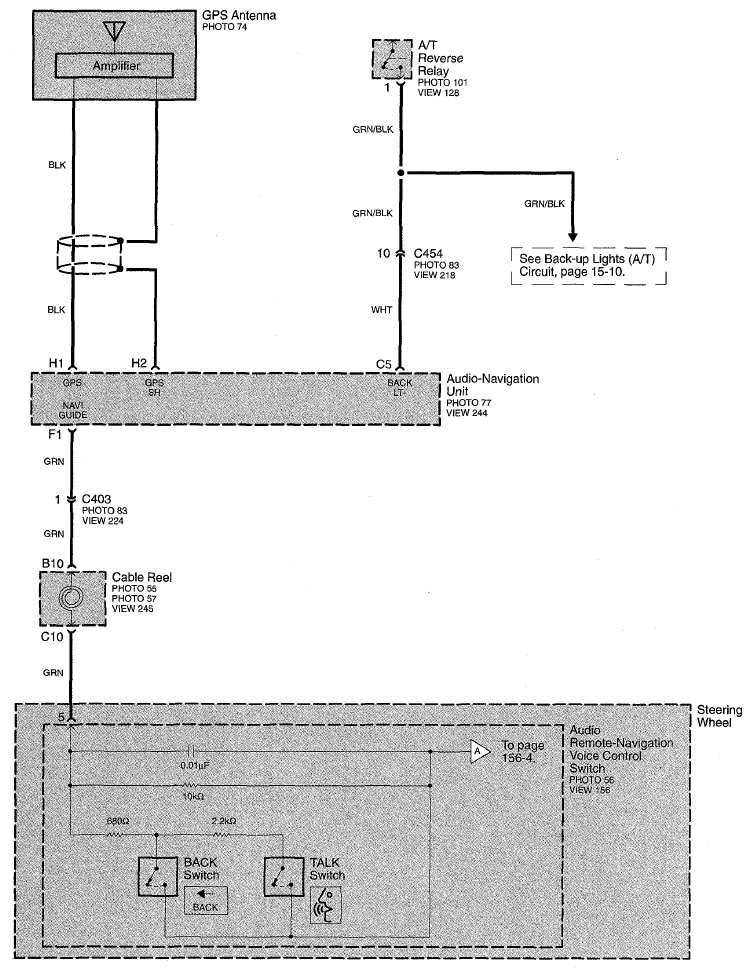

Fig 3: Navigation System Circuit Diagram (Page 156-2)
G07758427

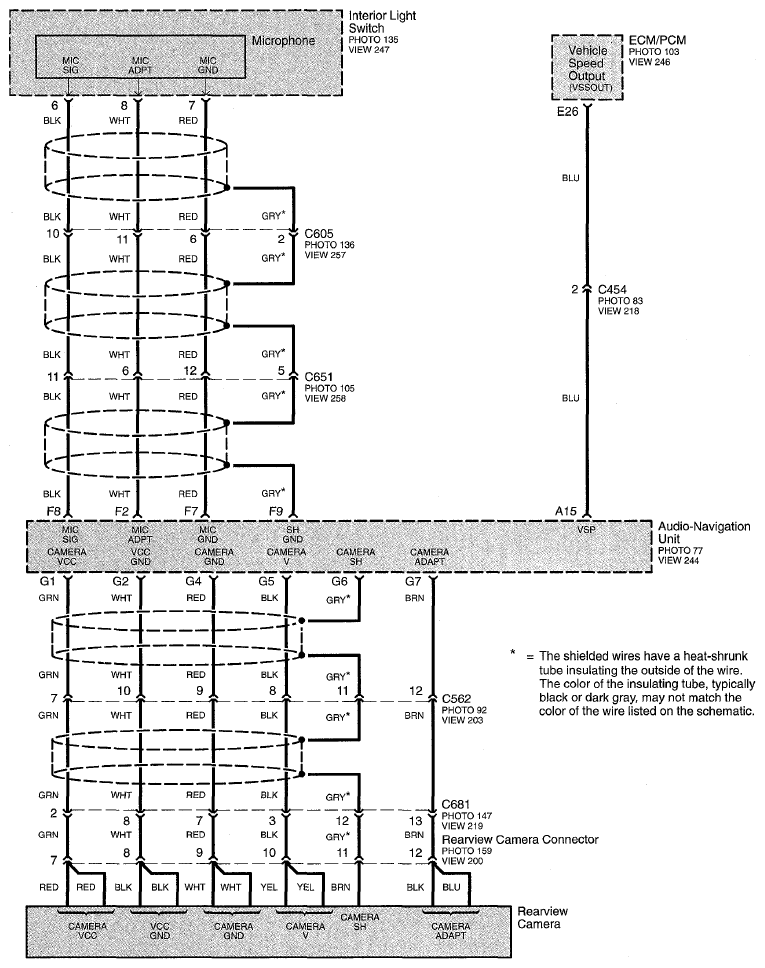

Fig 4: Navigation System Circuit Diagram (Page 156-3)
G07758428

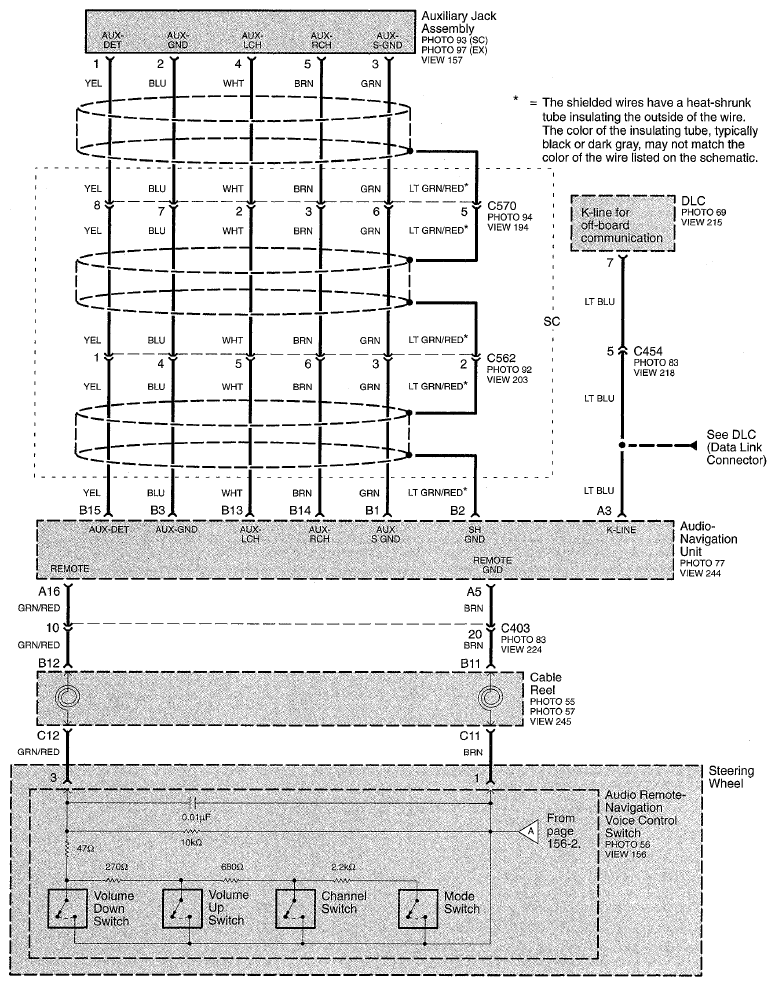

Fig 5: Navigation System Circuit Diagram (Page 156-4)
G07758429

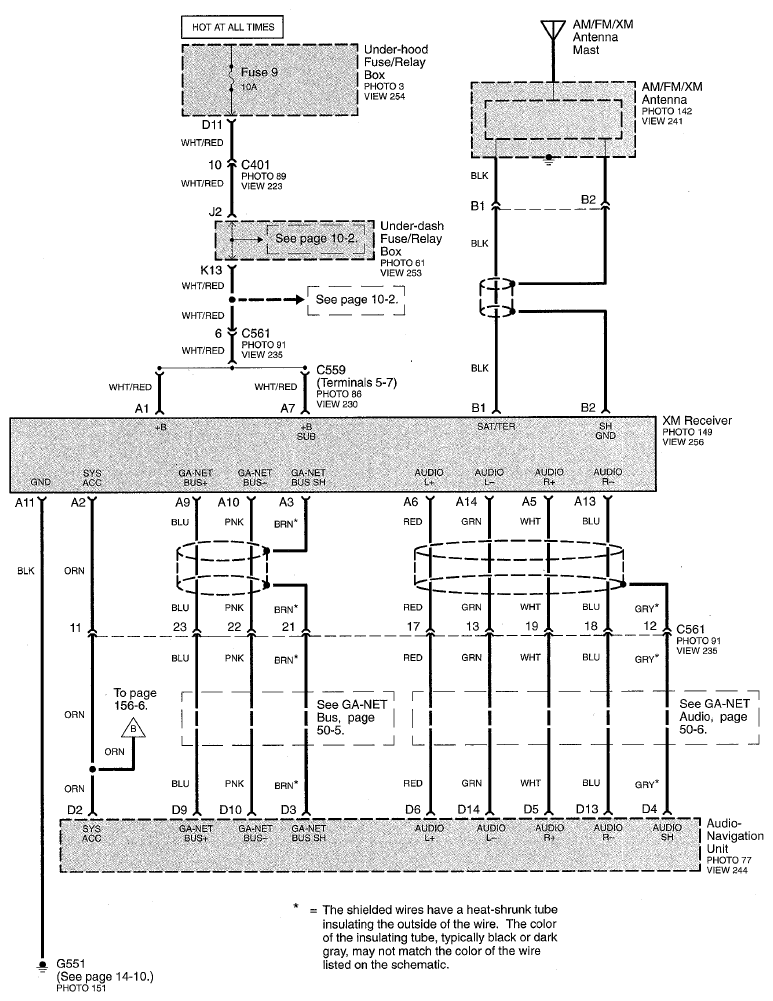

Fig 6: Navigation System Circuit Diagram (Page 156-5)
G07758430

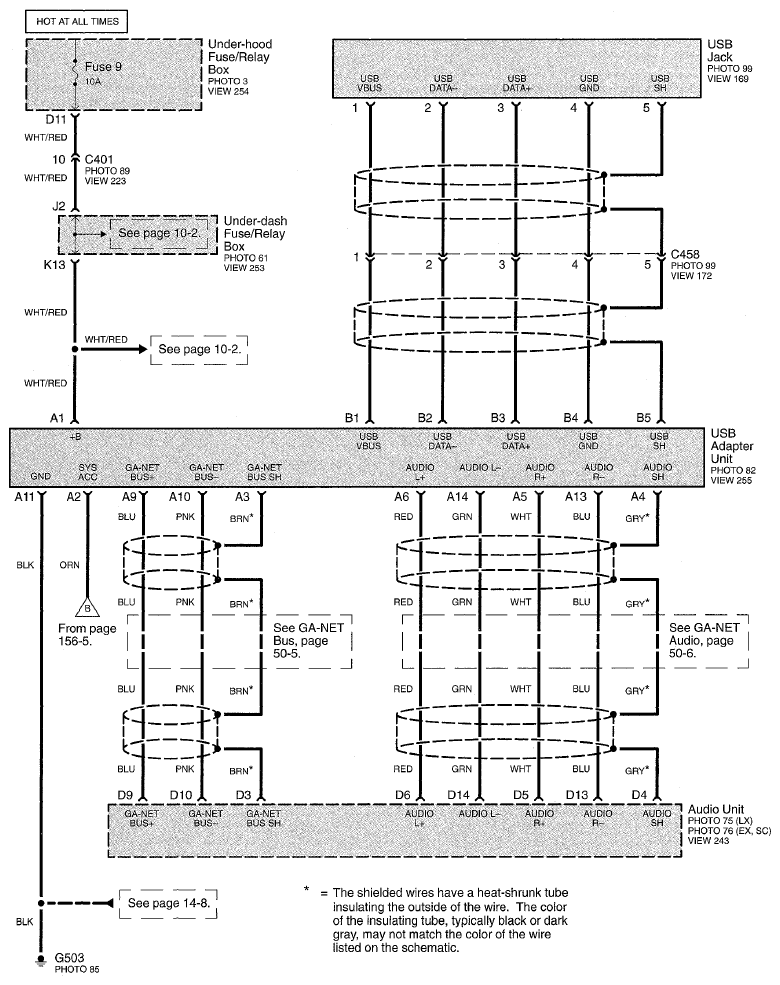

Fig 7: Navigation System Circuit Diagram (Page 156-6)
G07758431
