Circuit Diagram
Fig 1: Identifying TPMS (Tire Pressure Monitoring System) Circuit Diagram ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

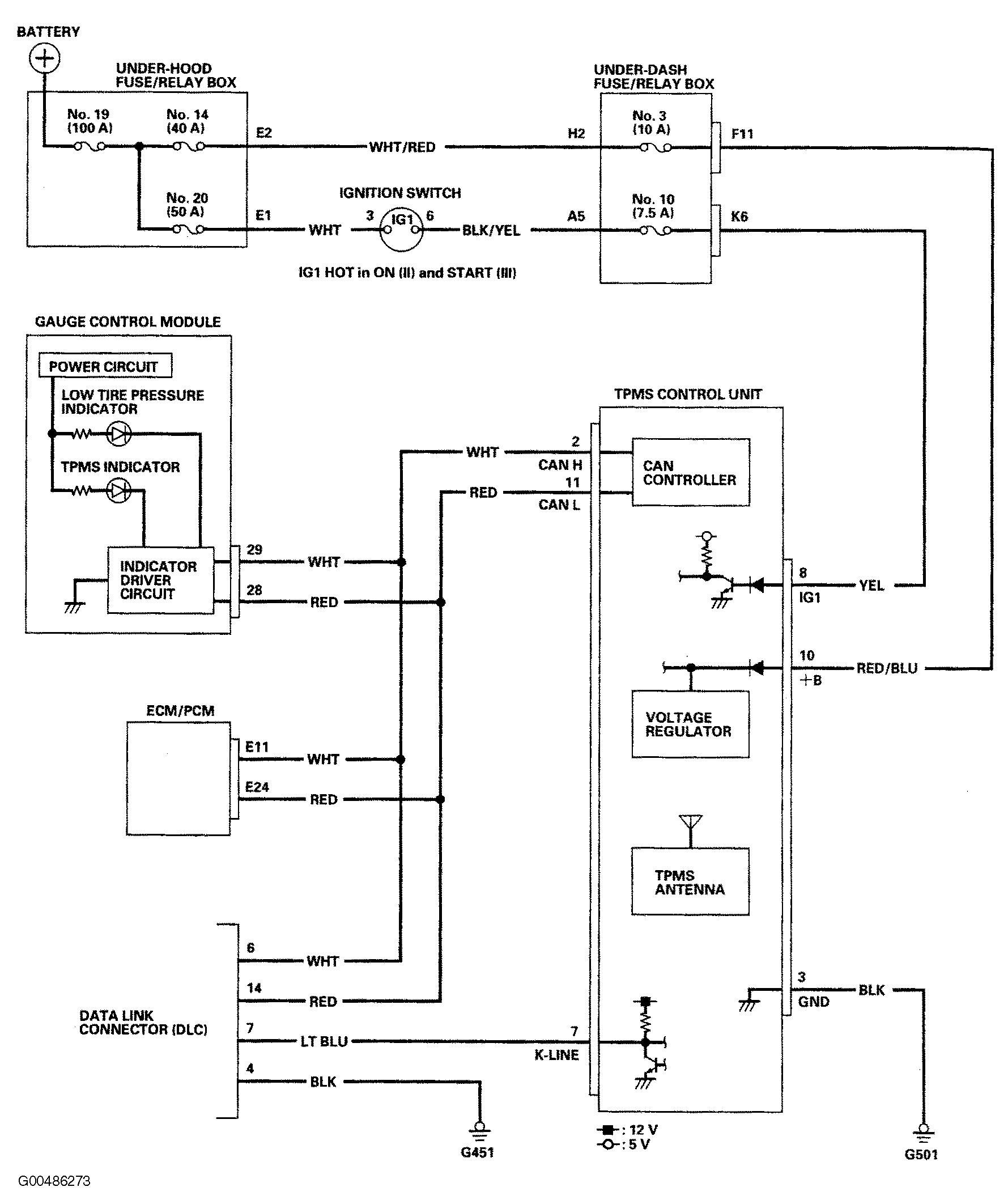

Fig 2: Identifying TPMS (Tire Pressure Monitoring System) Circuit Diagram ('09-11 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

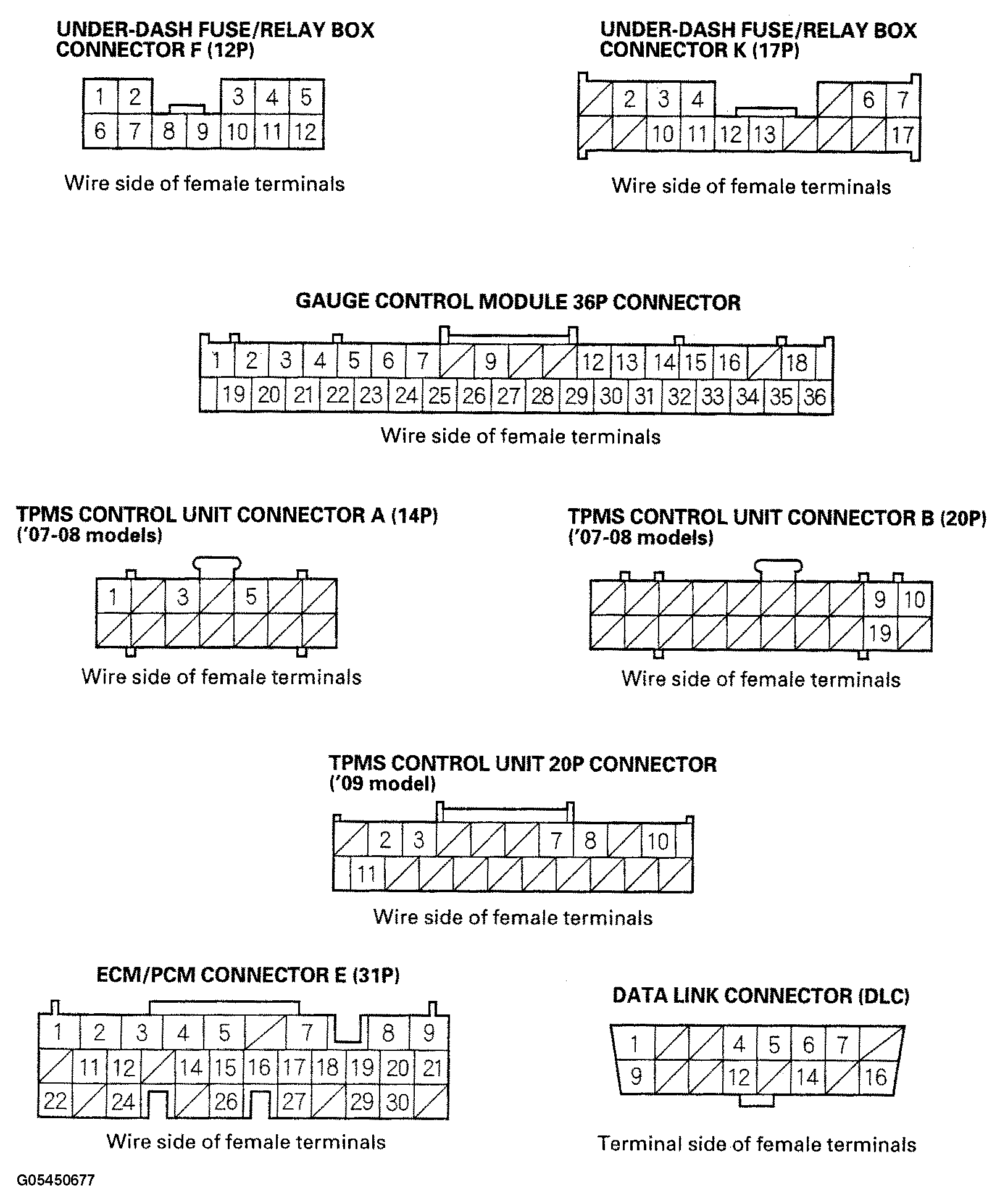

Fig 3: Identifying TPMS (Tire Pressure Monitoring System) Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
