Master Cylinder Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the master cylinder (see MASTER CYLINDER REPLACEMENT ).
Inspect and note these items:
- Before reassembling, check that all parts are free of dirt and other foreign particles.
- Do not try to disassemble the master cylinder assembly. Replace the master cylinder assembly with a new part if necessary.
- Do not allow dirt or foreign matter to contaminate the brake fluid.

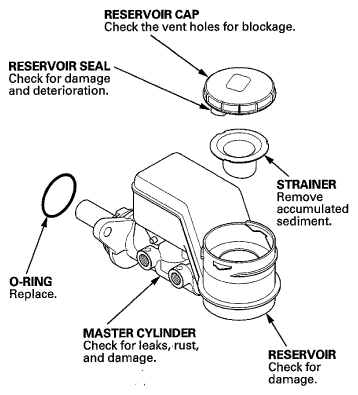

  Fig 1: Inspecting Master Cylinder Components
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the master cylinder (see MASTER CYLINDER REPLACEMENT ).
