CESS Articulated Harness Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door sill trim (see SLIDING DOOR OPENING ).
  2. Remove sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  3. Disconnect the 6P [and 21P] connectors (A) from the CESS articulated harness (B).

    []: With power sliding door

    NOTE: The illustration shows with power sliding door.

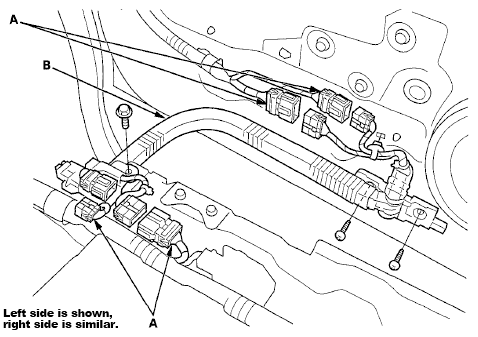

    Fig 1: Identifying CESS Articulated Harness Connectors
    G06968723Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolt and the two screws, then remove the CESS articulated harness.
  5. Install in the reverse order of removal.
