TMC (USA models)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

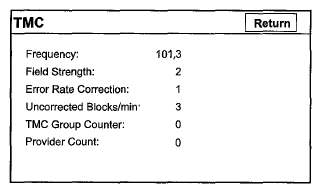

This diagnosis displays the current state of the RDS-TMC reception.
- Frequency: Frequency receiving at this time.
- Field Strength: Display reception sensitivity with 0-15;
- 0-5: No signal
- 6: Weak or intermittent signal
- 7-8: Marginal signal
- 9-15: Good signal
Error Rate Correction: RDS block error;
- 0: No error
- 1: Synchronous error
Uncorrected Block/min: The number of block errors per one minute.
TMC Group Counter: The number of message that is received.
Provider Count: The number of providers that can be received.
