Factory diagnostic screen In Line Diag
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the vehicle left the factory in the factory diagnostic mode, you will see this screen every time you turn the ignition switch to ON (II). You may also see this screen if you recently replaced the audio-navigation unit.
When the audio-navigation unit is powered up for the first time at the factory or sometimes when a remanufactured audio-navigation unit is installed, the factory diagnostic screen (In Line Diag) appears. Normally the factory does the steps necessary to verify proper operation and terminate the factory diagnosis. Until the proper confirmation sequence is done, the screen appears every time the vehicle is started.

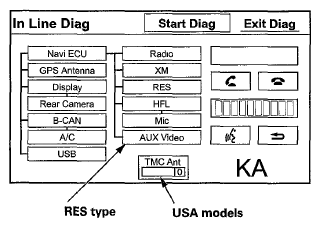

With rear entertainment
Without rear entertainment

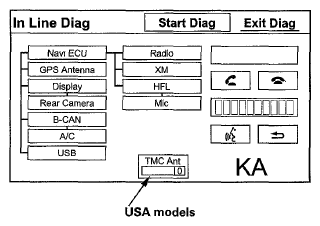

Fig 2: Navigation Screen Display - Factory Diagnostic Screen In Line Diag (Without Rear Entertainment)
Follow these steps to prevent the screen from showing up in the future:
- Press and hold the MAP/GUIDE, DEST/ROUTE, and CANCEL buttons at the same time until the Select Diagnosis Items screen comes up. Then release the buttons.
- Press and hold the MAP/GUIDE button until the In Line Diag Setting screen appears.

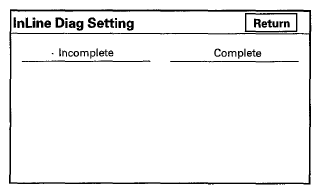

- Set the In Line Diag Setting to Complete, then select Return twice to exit the diagnostic mode.
