System Diagnostic Mode: B-Can
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

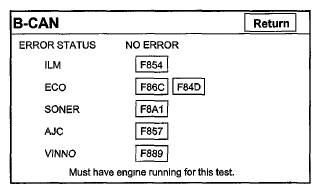

This diagnosis checks whether the audio-navigation unit is receiving B-CAN data properly.
B-CAN (Body Controller Area Network) passes information between processors on the network. The B-CAN network uses a communication protocol that transmits data at 125 Kbps.
- This diagnosis must have the engine running.
- If any icon colors red, check for B-CAN DTCs with the HDS.
