How to Clear Error History

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Do the steps in How to check Error History.
  2. Select Clear in the error menu.
    NOTE:
    • By selecting Clear, all software and hardware errors stored in history are erased at the same time.
    • Save is for factory use only.
    • Write down the navigation DTCs and error history before deleting.

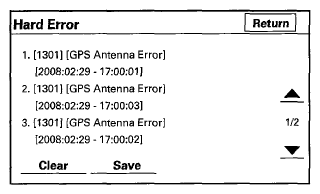

    Hard error history is displayed

    Fig 1: Navigation Screen Display - Hard Error
    G06971071Courtesy of AMERICAN HONDA MOTOR CO., INC.

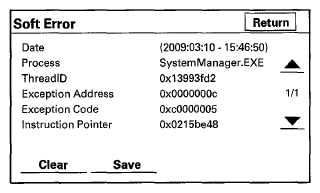

    Soft error history is displayed (software errors are for factory use only)

    Fig 2: Navigation Screen Display - Soft Error
    G06971072Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. After selecting Clear, then selecting Yes on the confirmation screen, both Hard Error history and Soft Error history are cleared at the same time.

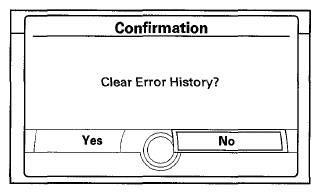

    Hard error history clear/Soft error history clear (Soft errors are for factory use only)

    Fig 3: Navigation Screen Display - Confirmation
    G06971073Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Select Return to exit the error history main menu.
