Rear Window Wiper Motor Replacement: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Be careful not to scratch or damage the tailgate.
  1. Remove the cover (A), the mounting nut (B), the wiper arm (C), and the special nut (D).

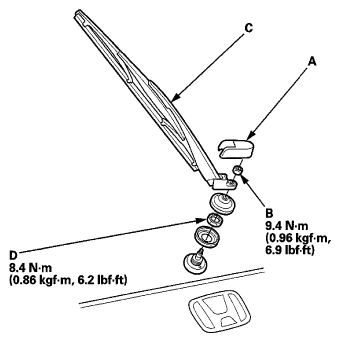

    Fig 1: Identifying Rear Window Wiper Motor Replacement Components With Torque Specifications
    G06969929Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the tailgate, and remove the tailgate lower trim panel (see TRIM REMOVAL/INSTALLATION - TAILGATE AREA ).
  3. Disconnect the 4P connector (A) from the rear window wiper motor (B).

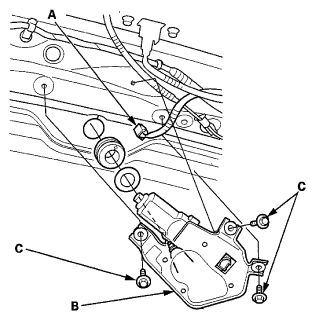

    Fig 2: Identifying 4P Connector And Rear Window Wiper Motor
    G06969930Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three bolts (C) and the rear window wiper motor.
