Rear Mode Control Motor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

Remove the rear HVAC unit (see REAR HVAC UNIT REMOVAL/INSTALLATION ).
Disconnect the 7P connector (A) from the rear mode control motor (B). Remove the self-tapping screws and the rear mode control motor from the rear HVAC unit.

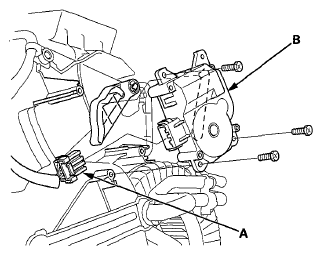

Fig 1: Identifying 7P Connector And Rear Mode Control Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
