Rear A/C Control Unit Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect connectors (A) from the rear A/C control unit (B), then remove the self-tapping screws and the rear A/C control unit from the rear HVAC unit.

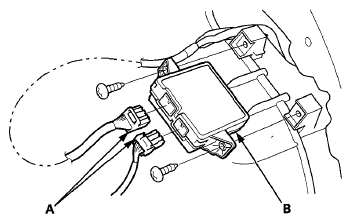

    Fig 1: Identifying Connectors And Rear A/C Control Unit
    G06968466Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the rear A/C control unit in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
  4. Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO CHECK FOR DTCS WITH THE HDS  ).
