Rear A/C Control Panel Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the passenger's side second row roof outlet (see step 7 on HEADLINER REMOVAL/INSTALLATION ).
Remove the self-tapping screws and the rear A/C control panel (A) from the passenger's side second row roof outlet.

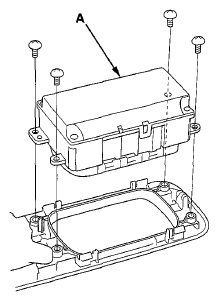

Fig 1: Identifying Rear A/C Control Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear A/C control panel in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO USE THE CLIMATE CONTROL UNIT SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS (WITH CLIMATE CONTROL) ).
