Front Bumper Lower Mesh Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the bumper.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  1. Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION  ).
  2. Release the hooks (A) (12 places), (B) (eight places), then remove the front bumper lower mesh (C).

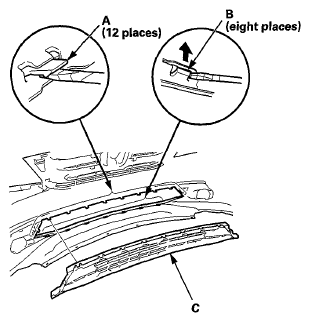

    Fig 1: Identifying Front Bumper Lower Mesh And Hooks
    G06968018Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the lower mesh in the reverse order of removal, and push the hooks into place securely.
