Coin Pocket Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Take care not to scratch the dashboard or the related parts.

From under the dash, remove the screws, then remove the coin pocket (A).

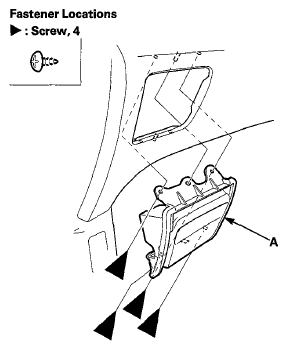

Fig 1: Identifying Coin Pocket With Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If necessary, release the pocket spring (A) from the pocket panel (B) and the pocket (C). Release the projections (D), then remove the pocket from the pocket panel.

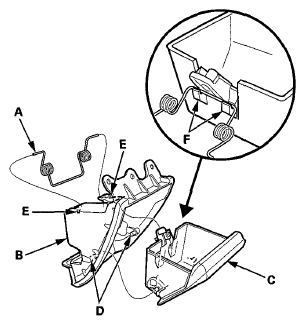

Fig 2: Identifying Pocket Spring, Pocket Panel, Pocket, Projections And Pocket Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the pocket in the reverse order of removal, and note these items:
- Be sure the pocket spring ends are installed in the holes (E) of the pocket panel.
- Be sure to install the pocket spring on the pocket hooks (F).
