Rear Inner Fender Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the body or the rear bumper.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  1. Remove the rear wheel (see KNUCKLE/HUB BEARING UNIT REPLACEMENT ).
  2. Remove the rear inner fender (A).
    1. Remove the screws (B) and the bolts (C).
    2. Detach the clips (D, E).
    3. Remove the nut (F).

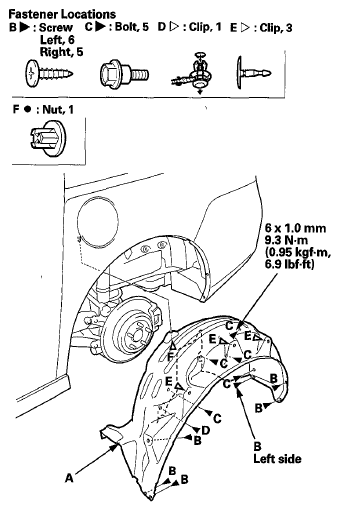

      Fig 1: Identifying Inner Fender Replacement Components With Torque Specifications
      G06968077Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the inner fender in the reverse order of removal, and note these items:
    • If the clips are damaged or stress-whitened, replace them with new ones.
    • Push the clips into place securely.
