DTC P2195: Air/Fuel Ratio (A/F) Sensor (Sensor 1) Signal Stuck Lean: Notes

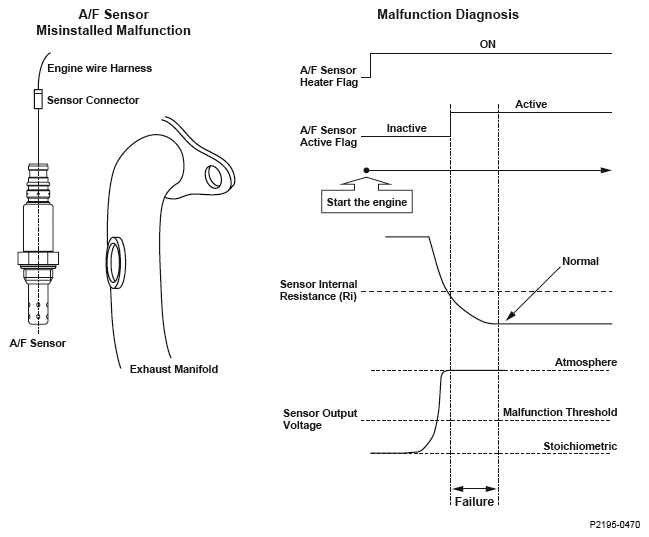

Fig 1: Identifying Air/Fuel Ratio Sensor With Malfunction Diagnosis

G04818055

Courtesy of AMERICAN HONDA MOTOR CO., INC.
