Element SC, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
VTEC/VTC System
VTEC/VTC System
NOTE:
For connector or component location "PHOTO", see
OEM-COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

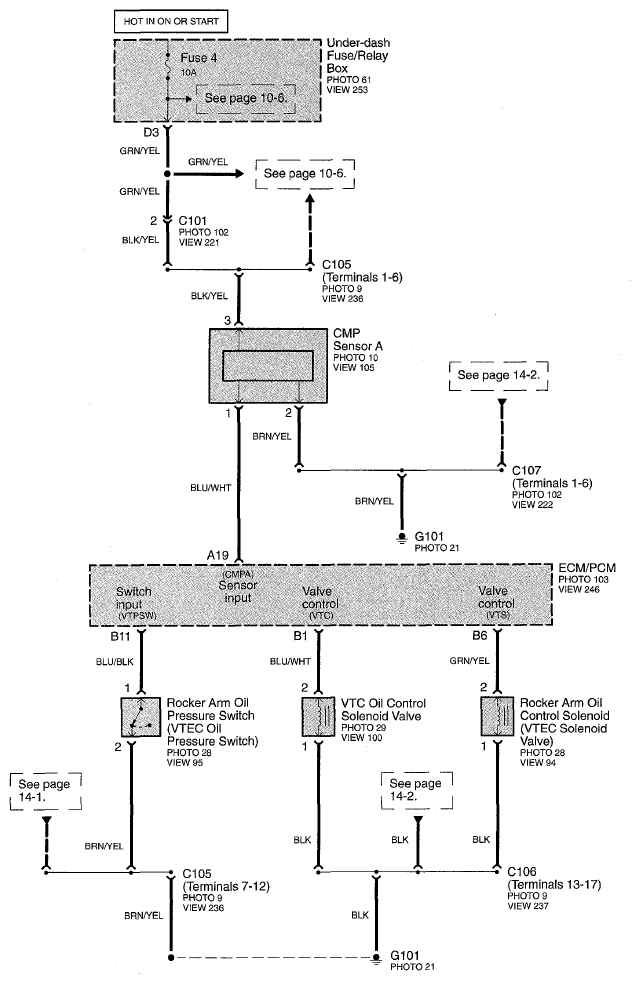

Fig 1: VTEC/VTC System Circuit Diagram (Page 31)
