Rearview Camera: Navigation
Fig 1: Rearview Camera (Navigation) Circuit Diagram (Page 161)

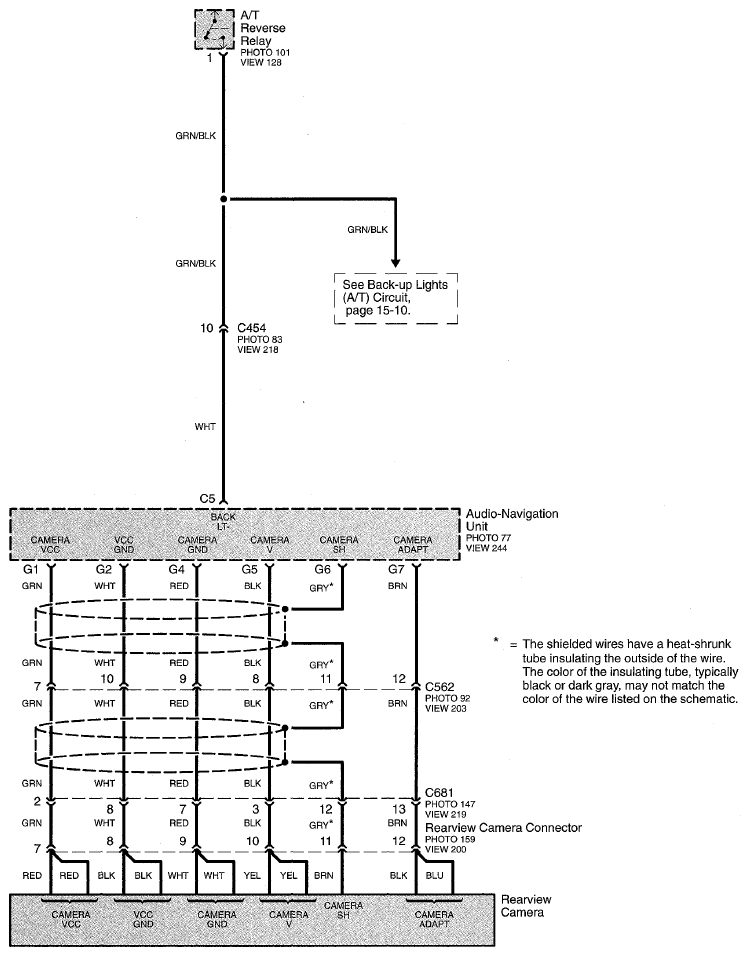

Fig 2: Rearview Camera (Navigation) Circuit Diagram (Page 161-1)
