Power Mirrors
>>
Notes
Power Mirrors: Notes
NOTE:
For connector or component location "PHOTO", see
OEM-COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

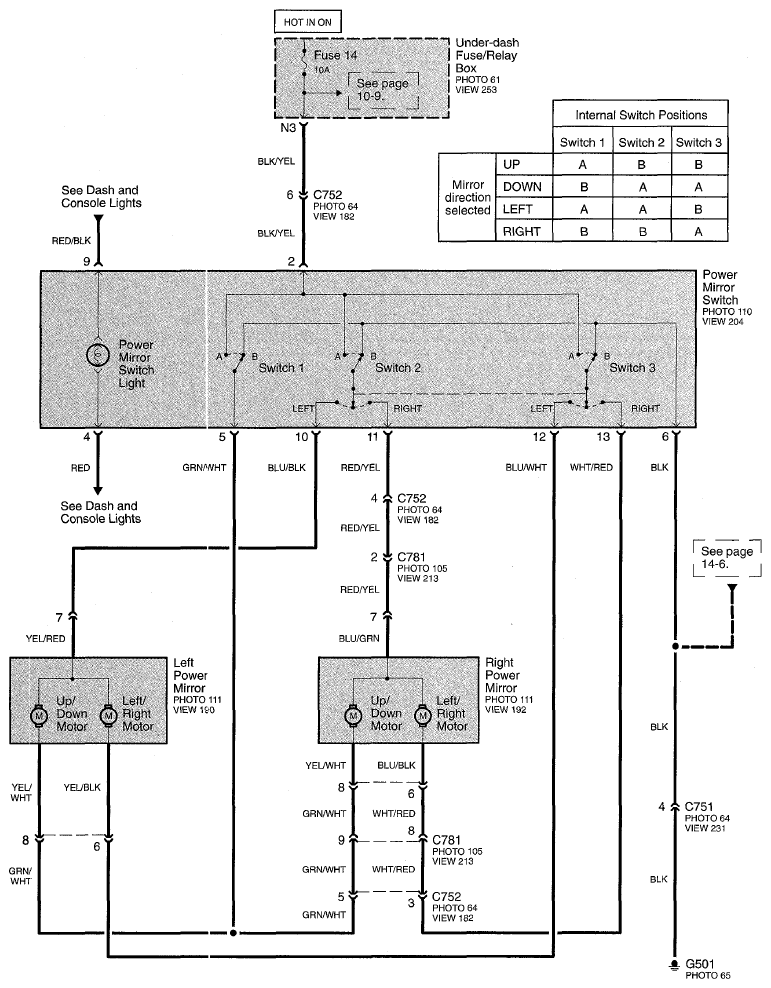

Fig 1: Power Mirrors Circuit Diagram (Page 141)
