Power Door Locks/Keyless Entry

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

Fig 1: Power Door Locks/Keyless Entry Circuit Diagram (Page 130)

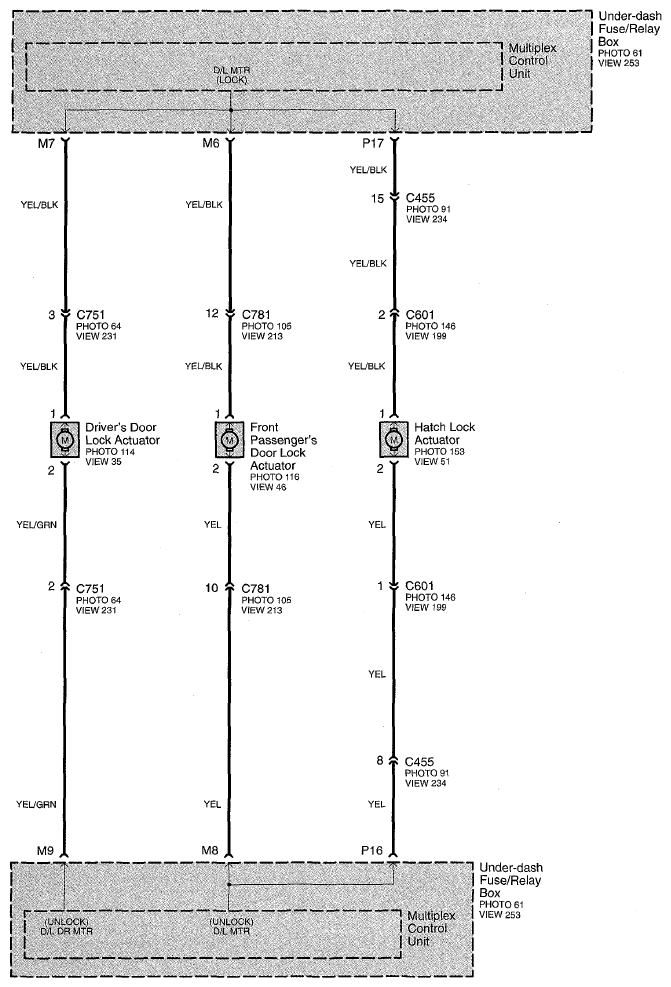

Fig 2: Power Door Locks/Keyless Entry Circuit Diagram (Page 130-1)

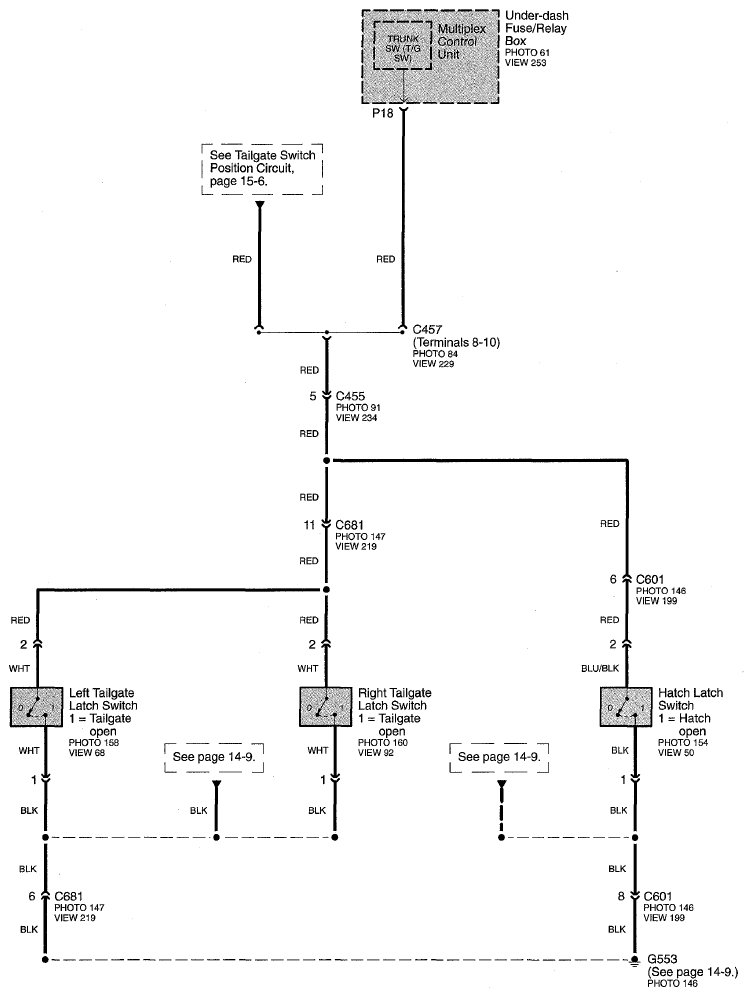

Fig 3: Power Door Locks/Keyless Entry Circuit Diagram (Page 130-2)

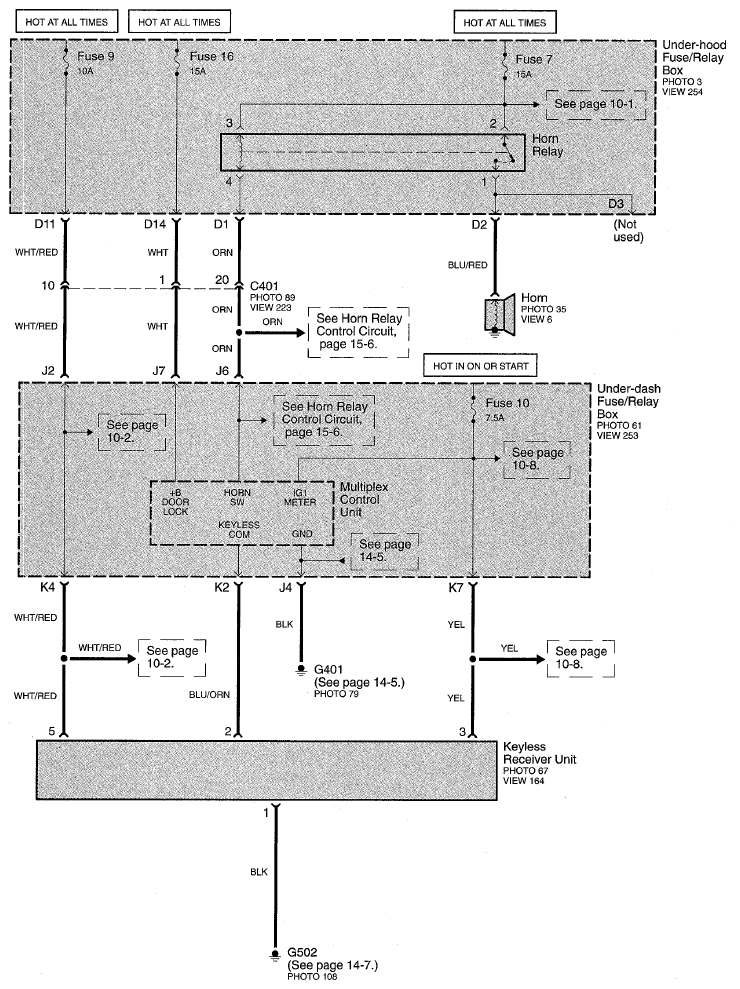

Fig 4: Power Door Locks/Keyless Entry Circuit Diagram (Page 130-3)

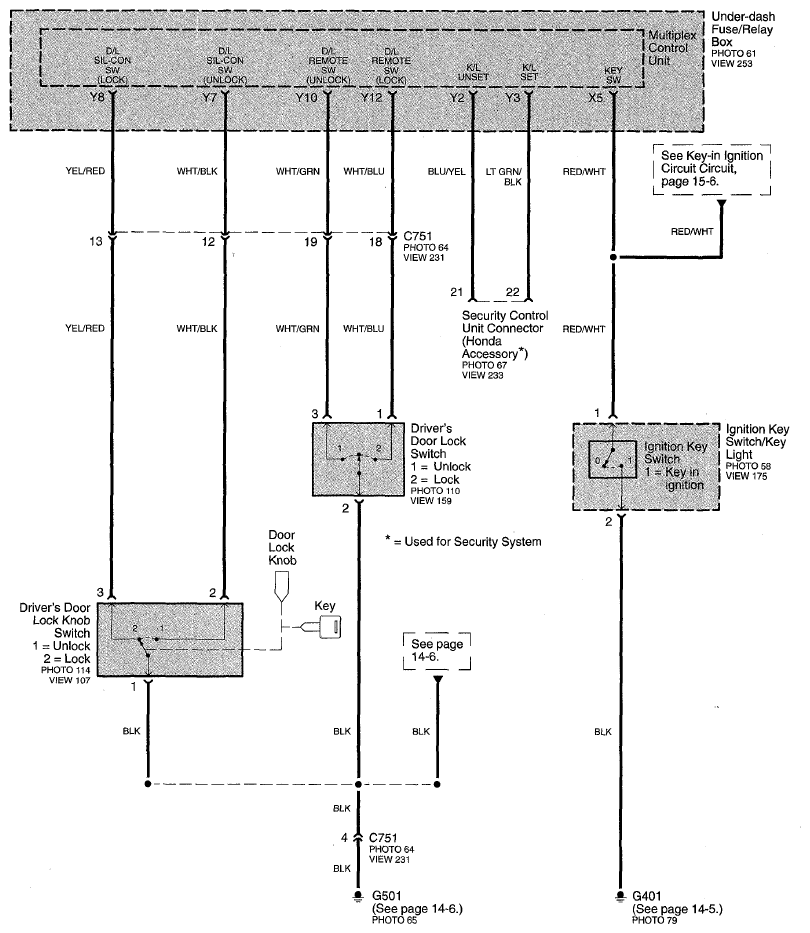

Fig 5: Power Door Locks/Keyless Entry Circuit Diagram (Page 130-4)

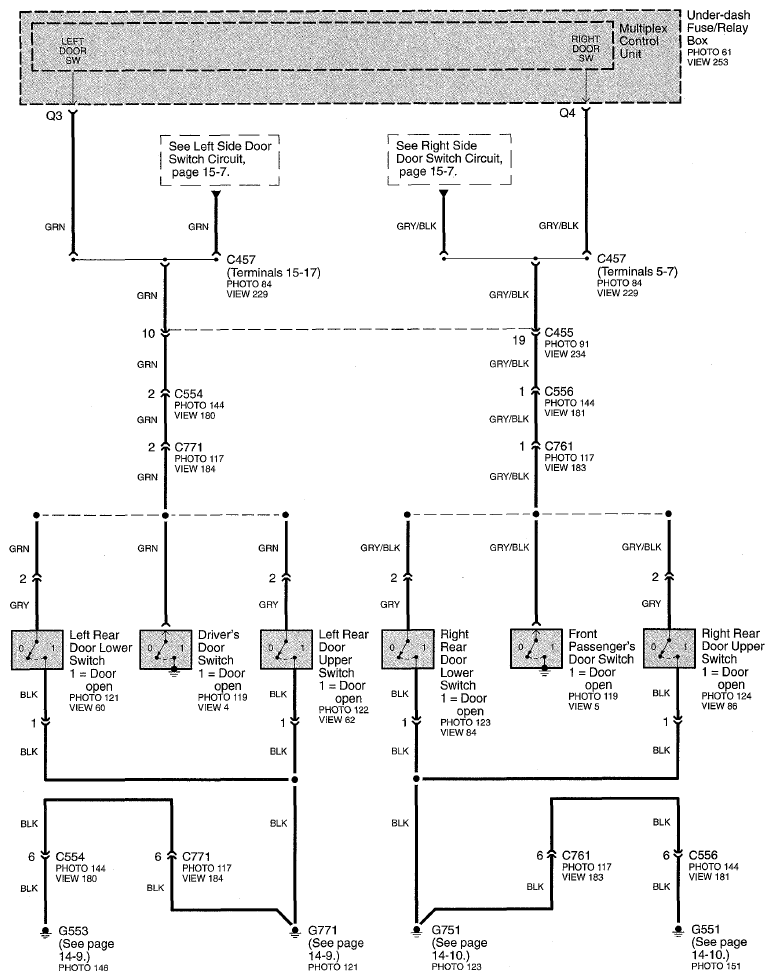

Fig 6: Power Door Locks/Keyless Entry Circuit Diagram (Page 130-5)
